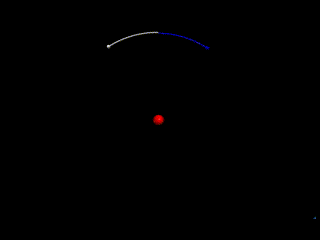

The result of the previous post should look something like this:

Paste the code at the end of this post here:

https://www.beautifulmathuncensored.de/static/GlowScript/GlowScript.html

And press “Run”.

Edit “pos” (position), “velocity”, “charge” and “mass” parameters to simulate a different set of charged particles.
Add a sphere with all the parameters (followed by a “,”) to add an additional charged particle to the simulation.

I hope people will play around and have fun!
(If you have questions, you can ask in the comments.)

Code:

# from math import *
# from visual import *
# from visual.graph import *
from vpython import *
# import vpython

scene.fullscreen = True

G = 10


# edit initial conditions here
##########
spheres = [
sphere(pos=vector(0,0,0),radius =6,color=color.red,charge=1000,mass=7200,velocity=vector(0,0,0),a = vector(0,0,0),trail=curve(color=color.red)),
sphere(pos=vector(0,100,-1),radius=2,color=color.blue,charge=-1,mass=1,velocity=vector(10,0,0),a=vector(0,0,0),trail=curve(color=color.blue)),
#sphere(pos=vector(0,12,0),radius=.08,color=color.green,mass=sqrt(4),velocity=vector(1.2,0,0.6),a=vector(0,0,0),trail=curve(color=color.green)),
sphere(pos=vector(0,100,1),radius=2,color=color.white,charge=-1,mass=1,velocity=vector(-10,0,0),a=vector(0,0,0),trail=curve(color=color.white)),
#sphere(pos=vector(0,28,0),radius=.4,color=color.orange,mass=sqrt(80),velocity=vector(0.7,0,0.4),a=vector(0,0,0),trail=curve(color=color.orange)),
#sphere(pos=vector(0,32,0),radius=0.2,color=color.white,mass=-sqrt(10),velocity=vector(1.5,0,0.4),a=vector(0,0,0),trail=curve(color=color.white))
]


#print(spheres[0].a)

#print(len(spheres))


def acceleration1on2(sphere2,sphere1):
    r = sphere2.pos - sphere1.pos
    r_mag = mag(r)
    normal_r = norm(r)
    g = ((G*sphere1.charge*sphere2.charge)/pow(r_mag,2))/sphere2.mass*normal_r
    #print(g)
    return g


t = 0
dt = .01
while 1:
    rate(100)
    for i in spheres:
        i.a = vector(0,0,0)
        soi = vector(0,0,0)
        for j in spheres:
            if i!=j:
                i.a = i.a + acceleration1on2(i,j)





    for i in spheres:
        #print(i.velocity)
        i.velocity = i.velocity + i.a *dt
        i.pos = i.pos+i.velocity*dt
        #print(i.a)
        i.trail.append(pos=i.pos)


    scene.center=vector(spheres[0].pos.x,spheres[0].pos.y,spheres[0].pos.z)



    # print(i.a)
